AI Technologies - Technical Deep Dive & Architecture

Version: 1.0 Last Updated: 2026-03-10 Goal: Understand the technical architecture, operational principles, and limitations behind AI technologies (LLM, RAG, MCP, Agents).

---

Table of Contents

1. What is AI/LLM? - Core Concepts
2. Transformer Architecture
3. Large Language Models (LLM)
4. Tokens and Context Window
5. Training, Fine-tuning, Prompting
6. RAG (Retrieval-Augmented Generation)
7. MCP (Model Context Protocol)
8. AI Agents and Tool Use
9. Limitations and Errors
10. AI Stack: Practical Architecture
11. Future: What to Expect?

---

What is AI/LLM? - Core Concepts

AI vs. ML vs. DL vs. LLM

AI (Artificial Intelligence)
> ML (Machine Learning)
> DL (Deep Learning)
> LLM (Large Language Models)

Term	Definition	Example
AI	Machines exhibiting intelligent behavior	Chess engine, recommendation systems
ML	Algorithms learning from data	Linear regression, decision trees
DL	Neural networks with deep layers	Image recognition (CNN), NLP (RNN)
LLM	Massive text-based neural networks	GPT-4, Claude, Gemini

What is an LLM?

Large Language Model = Massive language model

Core Idea: - Train a massive neural network on enormous amounts of text - Learns patterns in language usage - Can generate new text based on learned patterns

Analogy:

Human: Reads "The cat sat on the ___" billions of times
→ Probably expects "mat"
LLM: Sees "The cat sat on the ___" billions of times
→ Statistically "mat" is most probable (but could be "table", "floor")

IMPORTANT: LLMs DO NOT understand text like humans do. They follow statistical patterns.

---

Transformer Architecture

What is a Transformer?

Transformer = Foundation of modern LLMs, published in 2017 ("Attention Is All You Need" paper)

Before Transformers: - RNN (Recurrent Neural Network) - slow, sequential - LSTM (Long Short-Term Memory) - better, but still limited

Transformer Advantages: - Parallel processing (fast!) - Handles long-range dependencies (context) - Scalable (more parameters = better performance)

Transformer Structure

Input Text: "The cat sat on the mat"
↓
[Tokenization]
↓
[Embedding Layer] - Words → vectors
↓
[Positional Encoding] - Sequence information
↓
[Encoder Stack] (BERT-type models)
> Self-Attention
> Feed-Forward Network
> Normalization + Residual Connection
↓
[Decoder Stack] (GPT-type models)
> Masked Self-Attention
> Cross-Attention (Encoder output)
> Feed-Forward Network
> Normalization + Residual Connection
↓
[Output Layer]

Attention Mechanism - The Key

What is Attention? - Model "pays attention" to different parts of a sentence - Understands relationships between words

Example:

"The animal didn't cross the street because it was too tired."

Question: What was tired?
- "it" → "animal" (high attention weight)
- "it" → "street" (low attention weight)

Attention score:
it → animal = 0.89
it → street = 0.02
it → cross = 0.05

Self-Attention Formula (simplified):

Attention(Q, K, V) = softmax(Q × K^T / sqrt(d)) × V

Q = Query (what are we looking for?)
K = Key (what information is available?)
V = Value (what is the value?)
d = dimension (scaling factor)

Multi-Head Attention: - Not just 1 attention layer, but multiple parallel heads - Each "head" focuses on different aspects - Example: 1 head focuses on subject, another on object, third on time

---

Large Language Models (LLM)

LLM Types

Type	Architecture	Examples	Best For
Encoder-only	Encoder only (BERT-like)	BERT, RoBERTa	Classification, NER, Q&A
Decoder-only	Decoder only (GPT-like)	GPT-4, Claude, Llama	Text generation, chat
Encoder-Decoder	Both	T5, BART	Translation, summarization

GPT (Generative Pre-trained Transformer)

GPT = Decoder-only Transformer

How it works: 1. Given prompt: "The cat sat on the" 2. Model predicts next token: "mat" (highest probability) 3. Adds it: "The cat sat on the mat" 4. Predicts next: "." or "and" etc. 5. Repeat

Autoregressive generation:

Input: "The cat"
Output: "sat" (p=0.65)

Input: "The cat sat"
Output: "on" (p=0.78)

Input: "The cat sat on"
Output: "the" (p=0.82)

Claude (Anthropic)

Claude = Constitutional AI + RLHF

Differences vs. GPT: 1. Constitutional AI: Values embedded in training (safety, helpfulness, honesty) 2. RLHF (Reinforcement Learning from Human Feedback): Learns from human feedback 3. Larger Context Window: Claude 3.5 = 200K tokens (vs. GPT-4 128K) 4. Multimodal: Understands images (Vision)

Architecture (estimated, not official): - Transformer decoder-based - 100B+ parameters (Sonnet/Opus models) - Constitutional AI training methodology - Tool use capability (function calling)

Model Sizes (Parameters)

Model	Parameters	RAM needed (FP16)	Use Case
GPT-2	1.5B	~3 GB	Small, can run locally
LLaMA-2 7B	7B	~14 GB	Local, good quality
LLaMA-2 13B	13B	~26 GB	Local, better quality
GPT-3.5	~175B	~350 GB	API only
GPT-4	~1.7T (estimate)	~3.5 TB	API only
Claude 3.5 Sonnet	~100B+ (estimate)	~200+ GB	API only

Why do parameters matter? - More parameters = more "knowledge" stored - More parameters = better reasoning - But: More GPU, more cost, slower inference

---

Tokens and Context Window

What is a Token?

Token = Smallest unit of text the LLM sees

Tokenization example:

Input: "The cat sat on the mat."

Token split:
["The", " cat", " sat", " on", " the", " mat", "."]
^space is part of token!

Token IDs:
[464, 3857, 3332, 319, 262, 2603, 13]

Total: 7 tokens

Not always = word!

"unbelievable" → ["un", "believ", "able"] (3 tokens)
"AI" → ["AI"] (1 token)
"" → [<emoji_token>] (1 token, could be 2-3!)

Why important? - API cost: $/token - Context limit: max X tokens - Speed: more tokens = slower

Context Window

Context Window = How many tokens the model can "see" at once

Context Window = Input + Output

Example: Claude 3.5 Sonnet = 200,000 tokens

If Input = 150,000 tokens
→ Output max = 50,000 tokens

Context Window Sizes:

Model	Context Window	~Characters	~Pages
GPT-3.5	4K tokens	~3,000 chars	~2 pages
GPT-4	8K / 32K	~6,000 / ~24,000	~4-16 pages
GPT-4 Turbo	128K	~96,000	~64 pages
Claude 3 Opus	200K	~150,000	~100 pages
Gemini 1.5 Pro	1M (!)	~750,000	~500 pages

Why limited? - Computational cost: Attention = O(n²) complexity - Memory: More tokens = more GPU RAM - Quality: Very long context → "lost in the middle" problem

"Lost in the Middle" Problem

[Beginning of context] - Model remembers WELL
...
[Middle of context] - Model FORGETS (!)
...
[End of context] - Model remembers WELL

Example:
Context: 100,000 token document
Question: "What was mentioned on page 50?" (middle)
→ Model often fails to recall!

Solutions: - RAG (Retrieval-Augmented Generation) - see below - Chunking + summarization - Long-context fine-tuning

---

Training, Fine-tuning, Prompting

1. Pre-training (Foundation)

What happens: - Model trains on massive amounts of text (internet, books, code, etc.) - Goal: Learn language patterns - Cost: Millions/billions of dollars, multiple GPU clusters, months

Training data (estimated GPT-4): - CommonCrawl (web scraping): ~800 GB - Books: ~100 GB - Wikipedia: ~60 GB - Code (GitHub): ~500 GB - Scientific papers: ~200 GB - Total: ~2-10 TB cleaned text

Training objective:

Next token prediction:
Input: "The cat sat on the ___"
Target: "mat"

Loss = CrossEntropyLoss(predicted, target)
Backpropagation → Update weights
Repeat on billions of examples

2. Fine-tuning (Refinement)

What happens: - Take a pre-trained model - Additional training on specific task - Much less data needed (1K-1M examples)

Types:

Type	Data	Example	Best For
Supervised Fine-tuning	Labeled data (input-output pairs)	10K Q&A pairs	Specific task (chatbot, code)
RLHF	Human feedback (ranking)	"Which answer is better? A or B?"	Safety, helpfulness
LoRA (Low-Rank Adaptation)	Same as supervised, but fewer params	Fine-tune only 0.1% of parameters	Efficient, cost-effective

RLHF Workflow (Reinforcement Learning from Human Feedback):

1. Pre-trained Model
↓
2. Supervised Fine-tuning (SFT)
↓
3. Reward Model Training
- Humans rank: "This answer is better than that"
- Reward model learns what humans prefer
↓
4. Reinforcement Learning (PPO)
- Model generates answers
- Reward model scores them
- Model optimizes for reward
↓
5. Final Model (ChatGPT, Claude)

3. Prompting (Prompt Engineering)

What is a prompt? - The input you give to the AI - NOT training, but "steering"

Zero-shot Prompting:

Prompt: "Translate to French: Hello world"
Output: "Bonjour le monde"

No examples given, model knows task from training

Few-shot Prompting:

Prompt:
"Translate to French:
Hello → Bonjour
Goodbye → Au revoir
Thank you → Merci
Good morning → ???"

Output: "Bonjour"

Examples given, model learns in-context

Chain-of-Thought (CoT) Prompting:

Prompt:
"Q: Roger has 5 tennis balls. He buys 2 more cans of tennis balls.
Each can has 3 balls. How many tennis balls does he have now?
A: Let's think step by step.
Roger started with 5 balls.
2 cans × 3 balls/can = 6 balls
5 + 6 = 11 balls."

Better results on reasoning tasks!

System Prompts (Claude, GPT):

System: "You are a helpful Python expert. Answer concisely."
User: "How to sort a list?"
Assistant: "Use .sort() or sorted(). Example: sorted([3,1,2]) → [1,2,3]"

---

RAG (Retrieval-Augmented Generation)

What is RAG?

RAG = Retrieval + Generation

Problem: - LLM knowledge is limited (training data cutoff) - Context window is limited - Hallucination (makes up things)

Solution:

1. User question: "What's the latest platform version?"
2. Retrieval: Search in relevant documents
3. Found: "MyPlatform 2.5.3 released on 2026-03-01"
4. Augment: Add to prompt
5. Generate: LLM answers based on context

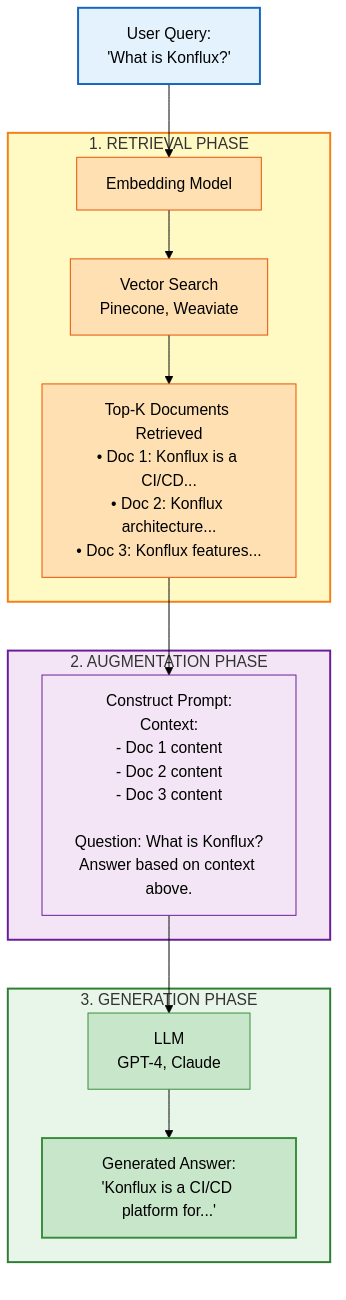

RAG Architecture

Embedding Models

What is Embedding? - Text → Vector (list of numbers) - Similar meaning → similar vector

Example:

"Kubernetes pod" → [0.23, 0.89, 0.12, ..., 0.45] (768 dimensions)
"K8s container" → [0.24, 0.88, 0.13, ..., 0.46] (similar!)
"Pizza recipe" → [0.01, 0.02, 0.99, ..., 0.12] (very different!)

Cosine similarity:
"Kubernetes pod" vs "K8s container" = 0.95 (high!)
"Kubernetes pod" vs "Pizza recipe" = 0.12 (low!)

Popular Embedding Models:

Model	Dimensions	Vendor	Use Case
text-embedding-ada-002	1536	OpenAI	General purpose
text-embedding-3-small	512-1536	OpenAI	Cheaper, faster
voyage-02	1024	Voyage AI	Code, technical docs
e5-mistral-7b	4096	Mistral	Long documents

Vector Databases

Popular choices:

Database	Type	Best For
Pinecone	Cloud	Managed, easy to use
Weaviate	Open-source	Self-hosted, flexible
Chroma	Embedded	Local development
FAISS	Library	High performance, Meta
Milvus	Open-source	Large scale

---

MCP (Model Context Protocol)

What is MCP?

MCP = Anthropic's protocol for communication between AI and external tools

Problem: - LLMs are isolated (can't read files, call APIs, etc.) - Every vendor uses different tool calling formats

MCP Solution: - Standard protocol - AI ↔ MCP Server ↔ External Tools - JSON-RPC based

MCP Architecture

Claude Code (MCP Client)
or other AI tool

MCP Protocol (JSON-RPC over stdio/HTTP)
↓

MCP Server (e.g., lumino-mcp-server)
- Tools
- Resources
- Prompts

Kubernetes API, Prometheus, etc.
↓

External Systems
- Kubernetes
- Prometheus
- Jira
- GitHub

MCP Components

1. Tools - Function-like capabilities - AI can call them with arguments - Example: get_pod_logs(namespace, pod_name)

2. Resources - Static or dynamic content - Example: Kubernetes YAML, logs, docs

3. Prompts - Pre-defined prompt templates - Example: "Debug pod in namespace X"

MCP Example (Python)

from mcp import MCPServer

mcp = MCPServer("lumino-mcp-server")

@mcp.tool()
async def get_pod_logs(namespace: str, pod_name: str) -> str:
"""Get logs from a Kubernetes pod."""
# Call Kubernetes API
logs = await k8s_api.read_namespaced_pod_log(pod_name, namespace)
return logs

# AI calls this:
# User: "Get logs from pod my-app in namespace production"
# AI: Calls get_pod_logs(namespace="production", pod_name="my-app")
# Returns: [actual logs]

MCP vs. Function Calling

Feature	MCP	OpenAI Function Calling
Protocol	JSON-RPC	JSON in API request
Transport	stdio, HTTP, SSE	HTTP only
Discovery	Dynamic (list tools)	Static (pre-defined)
Standard	Open (Anthropic)	Proprietary (OpenAI)
Streaming	Yes (SSE)	Limited

---

AI Agents and Tool Use

What is an AI Agent?

Agent = AI + Autonomy + Tools

Non-Agent:

User: "What's the weather?"
AI: "I don't have real-time data."

Agent:

User: "What's the weather?"
AI Agent:
1. Calls tool: get_weather(location="Budapest")
2. Receives: {"temp": 15, "condition": "cloudy"}
3. Responds: "It's 15°C and cloudy in Budapest."

Agent Loop (ReAct Pattern)

ReAct = Reason + Act

User: "Find the latest Kubernetes vulnerability and check if our cluster is affected"

Agent Loop:

1. REASON
"I need to search for K8s CVEs"

↓

2. ACT
Call: search_cve("Kubernetes")

↓

3. OBSERVE
Result: CVE-2024-1234 (v1.28.0)

↓

4. REASON
"Now check our cluster version"

↓

5. ACT
Call: get_k8s_version()

↓

6. OBSERVE
Result: v1.28.0

↓

7. REASON
"Versions match! Vulnerable!"

↓

8. RESPOND
"Your cluster v1.28.0 is affected
by CVE-2024-1234. Upgrade to
v1.28.1 recommended."

Agent Frameworks

Framework	Language	Features
LangChain	Python/JS	Most popular, many integrations
LlamaIndex	Python	Focus on RAG and indexing
AutoGPT	Python	Autonomous agent
BabyAGI	Python	Task-driven autonomous agent
Anthropic SDK	Python/TS	Claude-native, tool use

---

Limitations and Errors

1. Hallucination

What is it? - AI "invents" facts, code, references - Confidently lies

Example:

User: "What's the capital of Atlantis?"
AI: "The capital of Atlantis is Poseidonis, located in the central district."
^^^^ Made up, but sounds confident!

Why does it happen? - Model training: Always generates something (can't say "I don't know") - Probability-based: Doesn't "know" the answer, just predicts

How to defend: - RAG (controlled sources) - Citation (ask for sources) - Fact-checking (verify critical info)

2. Context Window Limitations

Problem: - Can't "remember" all previous conversations - When context window fills → "forgets" the beginning

Solutions: - Summarization (summarize, shorten) - RAG (store important info separately) - Stateful systems (store important info in DB)

3. Reasoning Limitations

Weak areas: - Complex math (multiplying large numbers) - Multi-step logic (many-step reasoning) - Spatial reasoning (3D geometry)

Example error:

User: "What's 123,456 × 789,012?"
AI: "97,408,265,472" (Could be right or wrong!)

Solution: Use calculator tool!

4. Outdated Knowledge

Training cutoff: - GPT-4: September 2023 - Claude 3: August 2023 - Gemini: varies

Doesn't know: - Today's news - New library versions - Fresh CVEs

Solutions: - RAG (real-time data) - Web search integration - API calls

5. Bias

Training data bias: - Internet ≠ objective - Over-represented: English, Western culture - Under-represented: Minority languages, cultures

Example:

Implicit bias: "Doctor" → assumes male
Stereotype: Programming → assumes certain demographics

Mitigation: - RLHF (human feedback) - Diverse training data - Red-teaming (test for biases)

---

AI Stack: Practical Architecture

DevOps/SRE AI Stack

USER INTERFACE
- CLI (Claude Code, Cursor)
- Web UI (ChatGPT, Claude.ai)
- IDE Plugin (GitHub Copilot, Tabnine)



AI ORCHESTRATION LAYER
- LangChain / LlamaIndex
- MCP Servers (lumino, jira, github)
- Agent Framework



LLM MODELS (API)
- OpenAI GPT-4 / GPT-3.5
- Anthropic Claude 3.5
- Google Gemini
- (or Self-hosted: LLaMA, Mistral)



KNOWLEDGE LAYER (RAG)
- Vector DB (Pinecone, Weaviate, Chroma)
- Embedding Models (OpenAI, Voyage)
- Document Store (S3, Postgres)



TOOLS & INTEGRATIONS
- Kubernetes API
- Prometheus / Grafana
- Jira / GitHub / GitLab
- PagerDuty / Slack
- SSH / Bash

---

Future: What to Expect?

1. Multimodal Models (Already Here!)

Current: - GPT-4 Vision (images) - Claude 3 Opus (images) - Gemini 1.5 (images, videos, audio)

Future: - Video generation (Sora, already announced) - Real-time audio conversation (GPT-4o) - 3D understanding (CAD, architectural plans)

2. Agentic AI (Autonomous AI Agents)

Current: - Simple tools (get weather, search) - Human-in-the-loop

Future: - Autonomous debugging (find bug → fix → test → deploy) - Self-healing infrastructure (detect issue → root cause → remediate) - Multi-step complex tasks (plan → execute → verify)

3. Longer Context Windows

Current: - Claude 3: 200K tokens - Gemini 1.5: 1M tokens

Future: - 10M+ tokens (entire codebase in context) - Unlimited context (via hierarchical memory)

4. Cheaper and Faster

Trend:

2020: GPT-3 → $0.06 / 1K tokens
2023: GPT-3.5 → $0.002 / 1K tokens (30x cheaper!)
2024: GPT-4o mini → $0.00015 / 1K tokens (400x cheaper!)

Inference speed:
2020: 10 tokens/sec
2024: 100+ tokens/sec (10x faster!)

Future: - Near-instant responses - Sub-cent per query - Local models (Llama 4, Mistral) rivaling GPT-4

5. Specialized Models

Trend: - Code-specific: GitHub Copilot, Cursor - Medical: Med-PaLM - Legal: Harvey AI - DevOps/SRE: ???

Future: - Platform-specific AI (trained on platform docs, code, logs) - Kubernetes expert AI (certified!) - Security-focused AI (CVE detection, patch suggestion)

6. Improved Reasoning

Current: - Chain-of-Thought helps - Still struggles with complex logic

Future (GPT-5, Claude 4?): - Better math/logic reasoning - Multi-step planning - Formal verification (prove code correctness)

7. Privacy and Security

Current: - Cloud-only (privacy concerns) - Prompt injection vulnerabilities

Future: - On-premise models (local deployment) - Federated learning (no data leaves org) - Hardened against attacks (jailbreaks, injections)

---

Key Takeaways

1. LLM ≠ Database

LLM: - Statistical model, not database - Doesn't "know" the answer, predicts it - Hallucination possible

Use: - Generation, summarization, reasoning - NOT for: fact retrieval (use RAG!)

2. Context is King

The more context you provide: - Better answers - Less hallucination - More specific output

But: - Token limit exists - Cost increases

3. Tools Make AI Useful

Pure LLM: - Only text in/out - Isolated

LLM + Tools (MCP, Function Calling): - Real-time data - Action execution - Practical value

4. Verify Everything

AI output: - Not 100% reliable - Test, verify, review - Especially for critical systems (production, security)

5. AI Improves, But Fundamentals Matter

AI helps: - Faster coding - Better troubleshooting - Accelerated learning

But: - Fundamentals needed (networking, Linux, Kubernetes) - Debugging skills needed - Critical thinking needed

---

Further Learning

Papers (Fundamentals)

1. "Attention Is All You Need" (2017)
2. Original Transformer paper

3. https://arxiv.org/abs/1706.03762

4. "Language Models are Few-Shot Learners" (GPT-3, 2020)

5. https://arxiv.org/abs/2005.14165

6. "Constitutional AI" (Anthropic, 2022)

7. https://arxiv.org/abs/2212.08073

8. "Retrieval-Augmented Generation for Knowledge-Intensive NLP Tasks" (2020)

9. https://arxiv.org/abs/2005.11401

Courses

1. "CS324: Large Language Models" (Stanford)

2. https://stanford-cs324.github.io/winter2022/

3. "Practical Deep Learning for Coders" (fast.ai)

4. https://course.fast.ai/

5. "LangChain for LLM Application Development" (DeepLearning.AI)

6. https://www.deeplearning.ai/short-courses/

Hands-On

1. Build a RAG system:
2. LangChain + Chroma + OpenAI API

3. Index your platform docs, ask questions

4. Create MCP server:

5. Follow lumino-mcp-server example

6. Add your own tools

7. Fine-tune a model:

8. Use OpenAI fine-tuning API
9. Fine-tune on your org's data (if allowed)

---

Version History: - v1.0 (2026-03-10) - First version: Transformer, LLM, RAG, MCP, Agents

Next Topics (Future Versions): - Prompt Engineering Advanced Techniques - AI Security: Jailbreaks, Prompt Injection, Defenses - Model Training: Pre-training, Fine-tuning, RLHF Deep Dive - Local LLM Deployment: Ollama, vLLM, TGI
